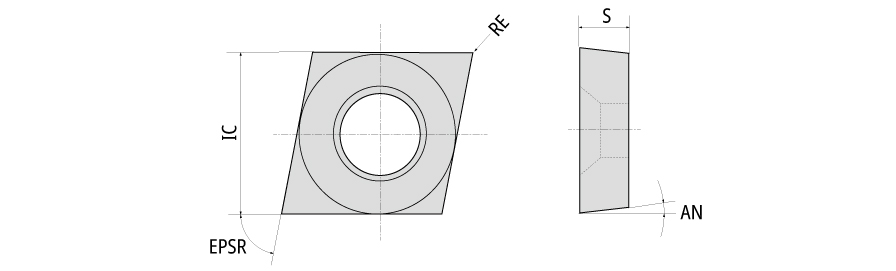

| Application | | Inserts for miniature | | Coating | TiCN |
| Corner Radius (RE) | 0.08 mm | Grade | VM1 |
| Insert Thickness (S) | 2.38 mm | Clearance Angle Major (AN) | 7 Degrees |
| Inscribed Circle Diameter (IC) | 6.35 mm | Measurement Type | Metric |
| Insert Included Angle (EPSR) | 80 Degrees | Body Material | Carbide |
| Cutting Edge Material | Carbide | Unit | M |
Product Features
| COO | Japan | BrandName | NTK |
| FamilyName | CCET type insert |
Shipping Info
Weight per item
0.0011
Name
Turning Indexable Inserts
FamilyName
CCET type insert
BrandName
NTK
