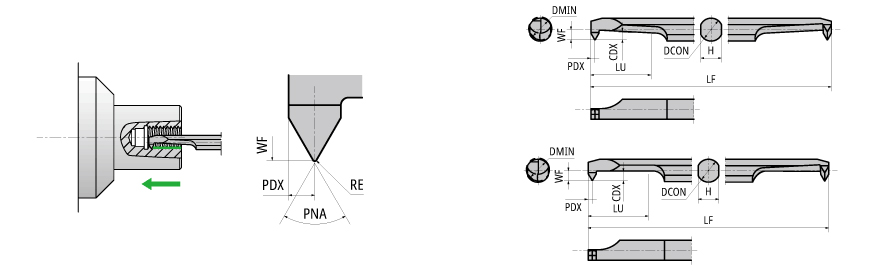

| Corner Radius (RE) | 0.05 mm | Application | | Inserts for miniature | |
| Cutting Depth Maximum (CDX) | 1.8 mm | Thread Pitch Minimum (TPN) | 0.75 mm |
| Thread Pitch Maximum (TPX) | 1.75 mm | Profile Included Angle (PNA) | 60 Degrees |
| Minimum Bore Diameter (DMIN) | 6 mm | Measurement Type | Metric |
| Coating | TiN | Body Material | Carbide |
| Grade | ZM3 | Unit | M |
| Cutting Edge Material | Carbide |
Product Features
| COO | Japan | BrandName | NTK |
| FamilyName | SBT type insert / stick duo series / Threading |
Shipping Info
Weight per item
0.0330
Name

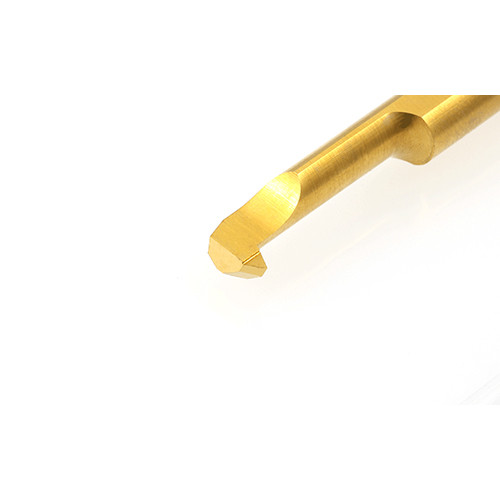

Groove/Turn Indexable Inserts
FamilyName
SBT type insert / stick duo series / Threading
BrandName
NTK
