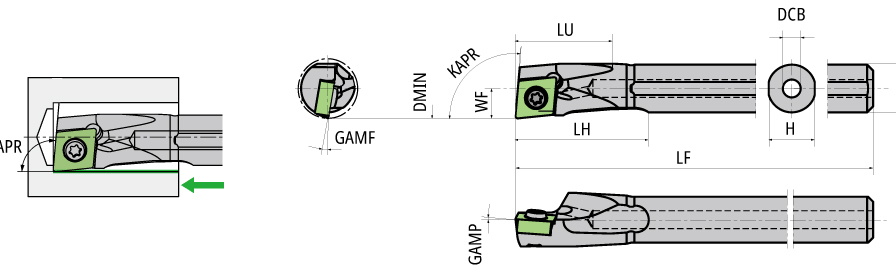

| Connection Diameter Machine Side (DCONMS) | 8 mm | Application | | Boring | |
| Functional Length (LF) | 100 mm | Rake Angle Axial (GAMP) | .0 deg |
| Head Length (LH) | 22 mm | Rake Angle Radial (GAMF) | 13.0 deg |
| Shank Height (H) | 7.7 mm | Body Material | Steel |
| Functional Width (WF) | 5 mm | Measurement Type | Metric |
| Minimum Bore Diameter (DMIN) | 10 mm | Unit | M |
Product Features
| COO | Japan | BrandName | NTK |
| FamilyName | S-SCLC-OH Mogul Bar |
Shipping Info
Weight per item
0.0394
Name

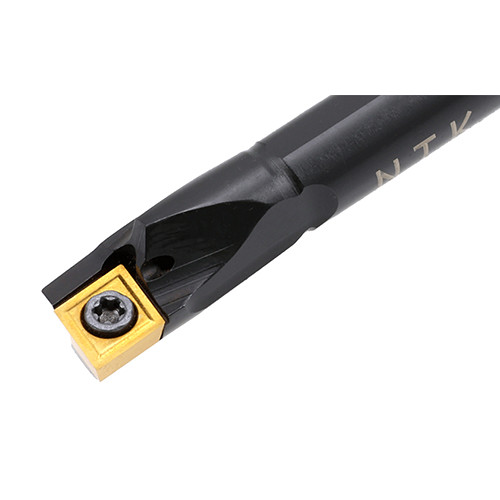

Indexable Internal Turning Tools
FamilyName
S-SCLC-OH Mogul Bar
BrandName
NTK
